Motorized Ball Valve 101: Functions, Types, and Specs

Learning the fundamentals of a motorized ball valve is the first step in a sourcing decision. This guide explains what these valves are, which specifications matter, and how to assess them for HVAC, water supply, smart-home, industrial, and process applications.

CWX-60P high-torque 2-way motorized ball valve from Tianfei.

What Problem Does a Motorized Ball Valve Solve?

Manual ball valves require on-site personnel to walk to each valve, turn a handle, and verify the open or closed state. In modern facilities with distributed piping, remote buildings, or automated control loops, this creates a bottleneck. A motorized ball valve adds an electric actuator to a standard quarter-turn ball valve, allowing a controller, thermostat, BAS, PLC, or smartphone to open or close the flow path automatically.

Automated valves reduce response times, enable scheduled operation, support remote monitoring, and integrate with leak-detection systems. For anyone involved in water management, heating and cooling systems, or industrial flow control, understanding the basics of motorized ball valves is becoming a necessary purchasing skill.

The Motorized Ball Valve Market Is Expanding

The adoption of motorized ball valves continues to grow alongside building automation, IoT integration, and industrial digitalisation. According to Dataintelo, the global motorized ball valve market was valued at USD 8.7 billion in 2025 and is projected to reach USD 14.2 billion by 2034. The same source reports that Asia Pacific accounted for 38.5% of global revenue in 2025.

Smart-valve demand is also visible. The Insight Partners projects the IoT valve market to reach USD 2.85 billion by 2031, growing at a CAGR of 10.4% from 2023. Two-way motorized ball valves hold the largest segment share within the motorized valve market at 42.1%, confirming that simple on-off and modulating two-port designs remain the core of the category.

China is an important sourcing region for valves. According to OEC, China exported USD 22.6 billion in total valves in 2024, maintaining a 20% global export share. Buyers therefore often evaluate Chinese manufacturers such as Tianjin Tianfei High-tech Co. alongside suppliers in Europe, North America, and other parts of Asia.

Understanding Motorized Ball Valve Fundamentals

A typical motorized ball valve combines a quarter-turn ball valve with an electric motor actuator. The motor rotates the valve stem by 90 degrees, moving the ball from fully open to fully closed or vice versa. Depending on the actuator design, the valve can support on-off duty, hold-in-position control, or proportional modulating control using analog signals.

A compact CWX-15N motorized ball valve, one of the frequently referenced models in the Tianfei lineup.

Main Valve Configurations

2-way motorized ball valves are the most common type. They control flow through a straight two-port pattern and are widely used in HVAC, water distribution, solar hot water systems, and factory automation. A 2-way valve may be normally-closed (NC), normally-open (NO), or hold-position, depending on how it should behave when power is interrupted.

3-way motorized ball valves add a third port and can act as mixing or diverting valves. With T-port or L-port ball openings, they allow one supply stream to be mixed with another or directed between outlets. This makes them suitable for central air-conditioning mixing, underfloor heating distribution, industrial fluid switching, and water treatment applications.

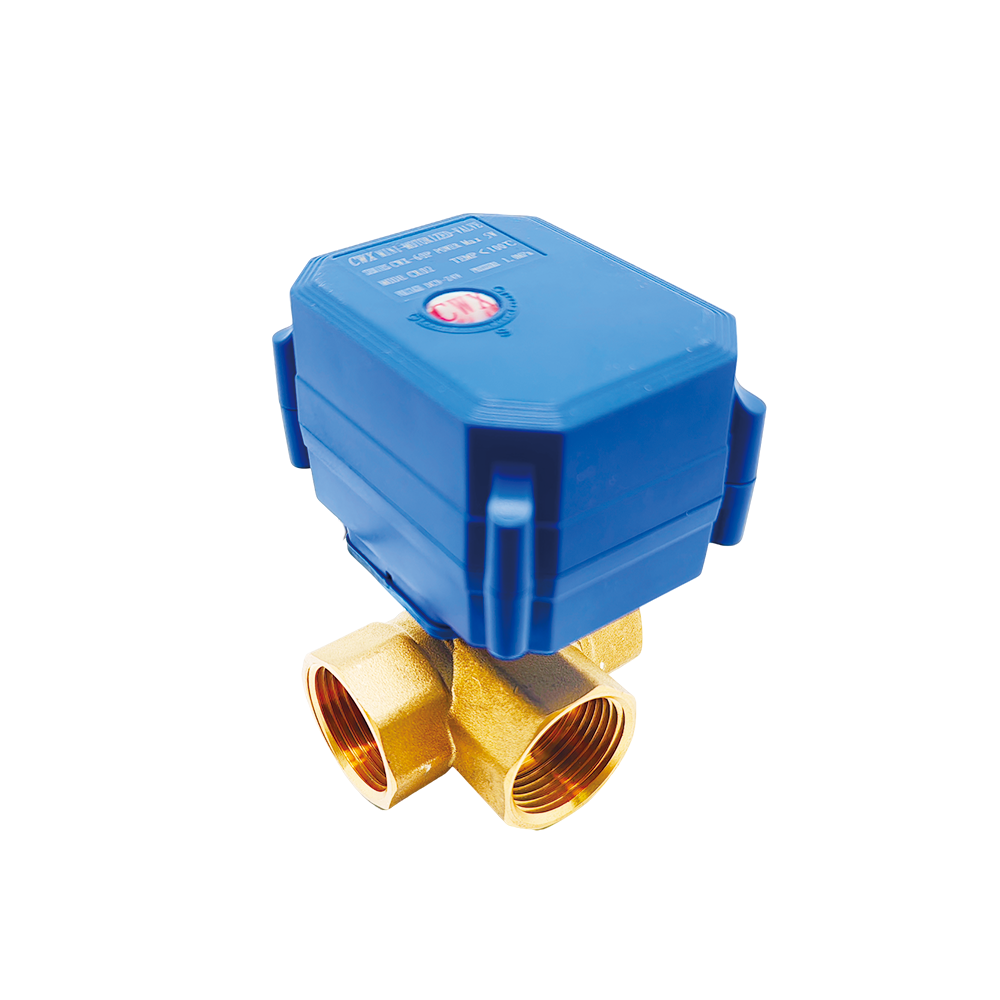

CWX-60P series also includes a 3-way T/L port motorized ball valve.

Specifications That Define a Motorized Ball Valve

When comparing motorized ball valves, buyers need to check pipe size (DN), supply voltage, actuation torque, power-failure mode, control signal, ingress protection (IP rating), and maximum working pressure. These parameters determine whether the valve can handle the pipe diameter, the available electrical supply, and the operating environment.

Inside One Manufacturer's Product Range: Tianfei Motorized Ball Valves

Tianjin Tianfei High-tech Co. is a national high-tech enterprise under Tianjin Jinfeng Technology Investment Group. Founded in 2009, it is a founding member of China's micro electric valve industry. The company specializes in the research, development, manufacturing, and sales of high-end intelligent valves and metering instruments, with a focus on intelligent energy management and control. It employs approximately 100 staff and operates a manufacturing facility of 30,000 square metres.

Tianfei's motorized ball valve portfolio spans compact brass or stainless steel units, higher-pressure stainless steel models, high-torque modulating valves, 3-way mixing valves, corrosion-resistant PVC valves, and WiFi-enabled smart water valves.

Representative lines include:

• CWX-15N: A compact 2-way motorized ball valve in sizes from DN15 to DN50. It is available with AC220V, DC12V, or DC24V, provides 3 N·m torque, IP65 protection, and a maximum working pressure of 1.0 MPa.
• CWX-15S: A 2-way motorized ball valve in DN15–DN50 with a higher working pressure rating of 1.6 MPa and IP65 protection.
• CWX-20P: A brass 2-way motorized ball valve in DN20–DN50, offering 5 N·m torque, IP65 protection, and a 1.0 MPa pressure rating.
• CWX-25S: A large-bore 2-way motorized ball valve covering DN25–DN80, with 10 N·m torque, IP67 sealing, and a 1.6 MPa pressure rating.
• CWX-60P (2-Way): A high-torque 2-way motorized ball valve covering DN15–DN100. It is rated at 20 N·m, supports on-off and modulating control via 0-10V or 4-20mA signals, and offers IP67 protection.
• CWX-60P (3-Way): A 3-way version with T/L port options in DN15–DN50, also with 20 N·m torque and IP67.
• CTB: A 2-way motorized ball valve with manual override, available in DN15–DN100, 6 N·m torque, IP67, and up to 1.6 MPa working pressure.
• CTF-001: A compact stainless steel motorized ball valve in DN15–DN50, with a wide AC85-265V / DC9-24V input and 3 N·m torque.
• CTF-001 PVC: A PVC-body motorized ball valve designed for corrosive media, available in DN15–DN50 with a maximum working pressure of 0.8 MPa.

For smart-home and garden water control, Tianfei also produces the WIFI WATER VALVE, a WiFi-enabled motorized ball valve designed for Tuya Smart / SmartLife, Alexa, and Google Home.

Step-by-Step Approach to Choosing a Motorized Ball Valve

1. Define the application and media. Is the valve for clean water, HVAC water, drinking water, corrosive chemicals, or smart-home leak shutoff? The media affects body material and seal selection.
2. Identify pipe size and valve pattern. Measure the line size in DN or inches and decide if you need a straight 2-way valve or a mixing/diverting 3-way valve. Confirm that the model family covers your required size range.
3. Choose the control mode. Simple remote open-close can use on-off control. Accurate temperature or flow regulation requires modulating control such as 0-10V or 4-20mA. Some Tianfei models support both.
4. Match the electrical supply. Select a voltage that is available on site. Common options include AC220V, DC24V, DC12V, and wide-voltage AC85-265V versions. For solar projects, DC low voltage is often preferred.
5. Check torque, IP rating, and pressure. Torque must be sufficient for the valve size. IP65 is usually acceptable for protected indoor locations, while IP67 suits wet or outdoor environments. The valve's maximum working pressure must exceed the system's normal operating pressure.
6. Review the supplier's capability and support. Look for a manufacturer with relevant product depth, quality control, export experience, and responsive communication. If possible, request a sample and verify actual performance before large orders.

Typical Use Cases Across Industries

Tianfei motorized ball valves are used in a broad range of applications. Product documentation highlights industries that include air conditioning water systems, household water systems, bathroom systems, smart irrigation robots, water conservation in colleges and universities, solar hot water projects, drinking water equipment, water purification equipment, automatic control timing systems, small industrial equipment, food processing, and small laboratories.

In smart building projects, 2-way motorized ball valves are commonly used for underfloor heating loops, hot water circulation, and fan-coil unit control. In energy management, high-torque modulating ball valves such as the CWX-60P 2-way are used for flow regulation in HVAC and industrial refrigeration systems. In corrosive media handling, PVC motorized ball valves serve chemical dosing and swimming pool applications. In smart homes, WiFi-enabled motorized ball valves work with leak detectors and mobile apps to close the water supply automatically.

Motorized Ball Valve Comparison Table

Note: Data shown is based on published Tianfei product information and product documentation. Always confirm the latest datasheet with the manufacturer before placing an order.

Frequently Asked Questions

Final Thoughts

Motorized ball valves are a fundamental building block in modern automated fluid control. Buyers who understand the key variables—pipe size, voltage, torque, IP protection, control mode, and application compatibility—can make better decisions when evaluating suppliers. Tianjin Tianfei High-tech Co. provides a range of motorized ball valves, from compact brass and stainless steel models to high-torque, 3-way, PVC, and WiFi-connected smart valves, backed by a large manufacturing facility.

If you are still in the research stage, start by mapping your application to a product family, compare the specifications that matter, and request samples before moving to bulk procurement.
