The Complete Guide to Motorized Ball Valves: Smart Control, Applications, and Selection Tips

The Need for Automated Valve Control

Manual ball valves require physical presence and are not suitable for remote or automated systems. In modern building automation, industrial processes, and smart water management, motorized ball valves enable precise control, scheduling, and emergency shut‑off without human intervention. They reduce labor costs, improve safety, and allow integration with IoT platforms for real‑time monitoring.

Industry Background: The Rise of Smart Valves

The global trend toward intelligent fluid control has driven demand for motorized ball valves with digital communication, low‑power operation, and multi‑voltage compatibility. Products such as the WiFi Smart Water Valve (model WIFI WATER VALVE) support Tuya Smart, Alexa, and Google Home, enabling remote control and leak‑protection automation. Other models offer Zigbee, Z‑Wave, or Modulating (0‑10V/4‑20mA) control, making them compatible with BAS, SCADA, and smart home ecosystems.

Detailed Product Solutions from Tianfei High-tech

Tianfei High-tech’s motorized ball valve portfolio covers every common requirement:

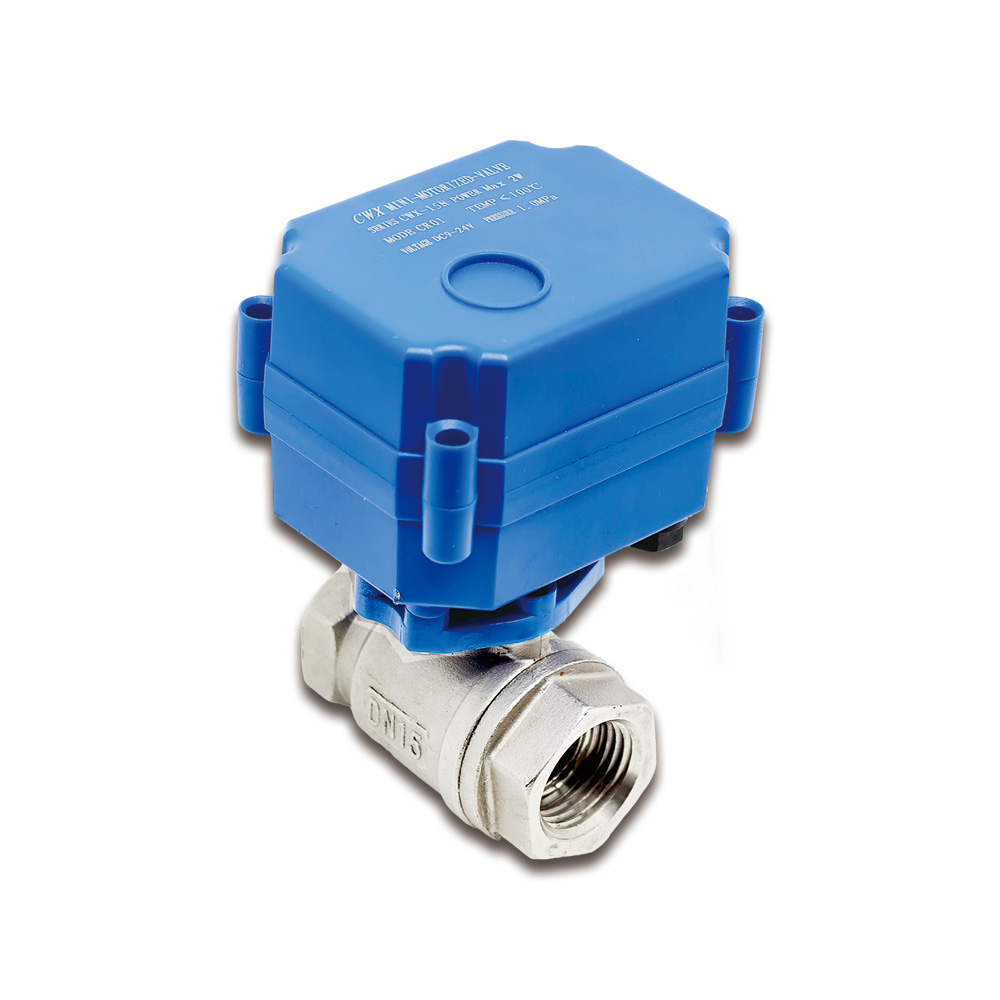

• CWX‑15N (id 1956): 2‑way, DN15‑DN50, 3 N·m torque, AC220V/DC12V/DC24V, IP65, brass/SS304. For HVAC, BAS, floor heating, hot water circulation.
• CWX‑20P (id 1958): 2‑way brass, DN20‑DN50, 5 N·m, AC220V/DC24V, IP65, NC/NO/Hold. Ideal for solar hot water, agricultural irrigation, water supply.
• CWX‑25S (id 1959): 2‑way large bore SS304, DN25‑DN80, 10 N·m, IP67. Designed for chemical, petroleum, pharma, desalination.
• CWX‑60P 2‑Way (id 1960): high‑torque 20 N·m, DN15‑DN100, IP67, modulating (0‑10V/4‑20mA) or on/off. For central A/C, industrial refrigeration, energy management.
• CWX‑60P 3‑Way (id 1961): T/L port, DN15‑DN50, 20 N·m, IP67. Used in HVAC mixing, floor heating distribution, fluid switching.
• CTB (id 1883): 2‑way with manual override, DN15‑DN100, 6 N·m, IP67. For BAS, municipal water supply.
• CTF‑001 (id 1885): compact SS, DN15‑DN50, 3 N·m, AC85‑265V/DC9‑24V, IP65. Drinking water, food sanitation, solar systems.
• WiFi Smart Water Valve (id 1964): WiFi 2.4GHz, DC6V (4 AA) or DC5V USB, DN15‑DN25, IP54, Tuya/SmartLife/Alexa/Google Home. Smart home leak protection.

Step‑by‑Step Selection Guide

1. Determine pipe size and pressure: Match DN size (DN15 to DN100) and working pressure (≤1.0 MPa or ≤1.6 MPa) per system requirements.
2. Choose voltage: Available in AC220V, DC12V, DC24V, or wide‑range AC85‑265V (CTF‑001). For remote or solar applications, low‑voltage DC models are preferred.
3. Select control mode: On/Off for simple isolation; modulating (0‑10V/4‑20mA) for precise flow regulation; NC/NO/Hold for fail‑safe logic.
4. Pick material: Brass for general water, SS304/316 for corrosive or sanitary media, PVC for acid/alkali (CTF‑001 PVC model).
5. Consider IP rating: IP54 for indoor residential, IP65 for outdoor/splash, IP67 for temporary submersion and harsh environments.
6. Add smart features: WiFi, Zigbee, or Z‑Wave for IoT platforms; manual override for emergency operation (CTB series).

Use Cases Across Industries

Tianfei’s motorized ball valves are applied in air conditioning water systems, household water systems, bathroom systems, smart irrigation robots, water conservation in colleges and universities, solar hot water projects, drinking water equipment, water purification equipment, automatic control timing systems, small industrial equipment, the food processing industry, and small laboratories. They are also used in fire protection, sewage/drainage, industrial circulating water, pharmaceutical, and smart water management projects. These applications are common in the United States, Germany, Italy, France, the United Kingdom, Canada, Brazil, Argentina, Vietnam, Thailand, Singapore, Malaysia, Japan, South Korea, and many other countries.

Comparison of Key Models

Frequently Asked Questions

Conclusion

Motorized ball valves are essential building blocks for modern fluid control — whether in a smart home, an HVAC system, a food processing plant, or a municipal water network. Tianfei High-tech offers a comprehensive range of reliable, certified valves backed by 15+ years of manufacturing experience, a 10‑engineer R&D team, and global export to Europe, the Americas, and Asia. To request a quote, catalog, or sample, reach out via the contact details below.
